STACX Lender API

Welcome to the STACX API. This documentation provides a comprehensive guide to all available endpoints, allowing you to seamlessly integrate our powerful financial tools into your applications.

Purpose

The Client Integration Guide serves as a comprehensive resource for facilitating the seamless integration of ATL products with client applications through the AVANZE API. It equips users with essential information necessary for the successful receipt of orders and the submission of products upon order completion.

This document is authored, updated, and disseminated by Avanze Tech Labs Inc. (“ATL”) with the primary objective of conveying implementation requisites to our valued clients and ATL product. ATL stands behind the accuracy and relevance of the content provided within this Client Implementation Guide, ensuring alignment with our integration standards.

Client ID

The following Client IDs are designated for use when sending order requests and handling other respective events. It is important for clients to ensure that all Client IDs are correctly configured within their respective environments.

Environment	Client ID	Client Name
UAT	ATLUAT	Will be provided during UAT
PROD	ATLPROD	Will be provided during PROD

Products

Through the Avanze API, clients have the capability to place orders for a variety of products. The product listing provided below contains all potential products that AvanzeAPI can deliver through the client platform. However, it is essential for clients to reference their individual subscription agreements with ATL and configure the products relevant to their specific implementation.

Product Code	Product Name
8	Post Closing
9	Loan Modification
10	CD

Connectivity Detail

Secure Communication: HTTPS ensures secure communication by encrypting data during transmission, preventing any unauthorized access during transit.
Data Transmission: With the POST method, you're sending data from the client application to the API endpoint. This data could be in various formats such as JSON, XML, or form data, tailored to the API's requirements.
Endpoint Interaction: The API endpoint is a specific URL provided by the API service that defines where the POST request should be sent. This endpoint typically represents a particular functionality or resource provided by the API.
Payload: Enclosed within the request body, the payload contains essential information important for the API to execute the desired operation. This may involve creating a new resource, updating existing data, or retrieving information.
Authentication: Accessing the API endpoint securely mandates authentication of the requests. This involves providing credentials, such as an API key or access token, within the request headers to substantiate the identity and authorization.
Response Handling: Upon sending the POST request to the API endpoint, a response is returned from the server. This response contains various information, including success or error status codes, along with any data generated by the API in response to the query.
Error Handling: When the API encounters difficulties processing requests, it will typically return an appropriate error status code and potentially additional error details in the response body. As a result, the client application must proficiently handle these scenarios and respond accordingly.

In summary, employing the HTTPS POST method to interface with an API facilitates secure and dependable communication between the client application and the API service. This capability empowers applications to seamlessly interact with and harness the full functionality offered by the API. Integration clients may also choose to develop an HTTPS Receiver of their own, in which they would receive via HTTPS Post.

Environment	URL
UAT	https://stage.avanzeapi.com/`{modulename}`/`{orgcode}`
PROD	https://avanzeapi.com/`{modulename}`/`{orgcode}`

Authorization

Instead of sending credentials in plain text through post parameters, an authenticated request includes the Authorization Header Variable. If this header is not included, the request is anonymous and may not succeed against API services.

1. Oauth Authentication

i. Oauth Token Generation

To obtain an authentication token, the client must submit valid credentials to the authentication service.

Upon successful authentication, a Bearer Token is issued with a predefined expiration period.
This token must be included in the Authorization header of all subsequent API requests.

Name	Type	Required	Description
`grant_type`	`string`	Yes	client_credentials
`client_id`	`string`	Yes	`{{your_client_id}}`
`client_secret`	`string`	Yes	`{{your_client_secret}}`
`scope`	`string`	Yes	`{{your_scope}}`

curl -X POST "https://stage.avanzeapi.com/oauth2/token" \
 -d '{
   "grant_type": "client_credentials",
   "client_id": "{{your_client_id}}",
   "client_secret": "{{your_client_secret}}" ,
   "scope": "{{your_scope}}
}'

Success response:

{
  "access_token": "eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9",
  "token_type": "Bearer",
  "expiresIn": 3600
}

Error response:

{
  "error": "invalid_request",
  "error_description": "UnAuthorized Credentials"
}

ii. Using the Bearer Token in API Requests

Once the token is received, it must be included in the HTTP Authorization header of all API calls

Name	Type	Required	Description
`Authorization`	`string`	Yes	`access_token` received from Oauth request

curl -X POST "https://stage.avanzeapi.com/{{modulename}}/{{orgcode}}" \
  -H "Authorization: Bearer {{access_token}}"

iii. Token Expiry & Renewal

The issued token has a fixed expiration time (e.g., 1 hour).
If a request is made with an expired token, the API responds with an error (NACK).
The client must request a new token from the authentication service before making further API calls.

iv. Error Handling

If an invalid or expired token is used, the API will return the following response.

Error response:

{
  "Header": {
   "Created":"2025-02-13T01:01:56-05:00",
   "SourceApp":"MAX",
   "SourceVer":"2.0",
   "SourceEnv":"UAT",
   "Status":"NACK"
 },
 "Transaction": {
   "TransactionID":"",
   "Errors":{
   "Type":"UnauthorizedAccessException",
   "Description":"Not Authorized."
   }
 }
}

v. Implementation Diagram

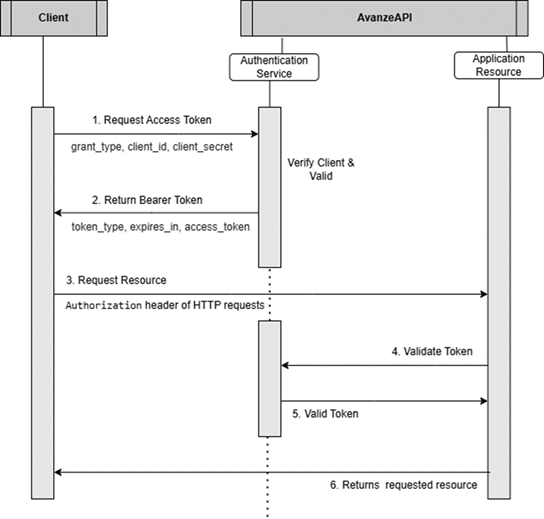

a. Token Request Process

b. API Request with Expired or Missing Token

Constructing Basic Authentication

Constructing Basic Authentication through headers involves encoding the username and password in a specific format and including them in the HTTPs request headers.

Encode Credentials: Combine the username and password with a colon (:) separator, then base64 encodes the resulting string. The format is username:password.

Include in Header: Set the Authorization header of the HTTP request to the value "Basic” followed by the base64 encoded credentials. The final header value should look like "Basic {{base64_encoded_credentials}}."

Name	Type	Required	Description
`Authorization`	`string`	Yes	`{{base64_encoded_credentials}}` base64 encoded username and password

curl -X POST "https://stage.avanzeapi.com/{{modulename}}/{{orgcode}}" \
        -H "Authorization: Basic {{base64_encoded_credentials}}"

API Events

Event Code	Event Name	Event Originator	Client Sending	Client Receiving	Event Definition
AT11	PlaceOrder	Client	`R*`		CLIENT sends this event to initiate an order request to AVANZE API.
AT12	AcceptOrder	Avanze API		`R`	AVANZE API sends this event to CLIENT to inform that STACX / MAX accepts the order request.
AT13	RejectOrder	Avanze API		`R`	AVANZE API sends this event to CLIENT with the order documents and product data.
AT14	ProductDelivery	Avanze API		`R*`	AVANZE API sends this event to CLIENT with the order documents and product data.
AT15	AddNotes	Both	`O`	`O`	CLIENT and/or AVANZE API send this event to provide a note on an order request.
AT21	HoldOrder	Both	`O`	`O`	CLIENT and/or AVANZE API send this event to place the order request on hold.
AT22	CancelOrder	Both	`O`	`O`	CLIENT and/or AVANZE API send this event to cancel the order request.
AT23	ResumeOrder	Both	`O`	`O`	CLIENT or AVANZE API sends this event to resume a service order request that has been cancelled or put on hold.
AT25	AddDocument	Both	`O`	`O`	CLIENT or AVANZE API sends this event to attach documents to the order.
AT30	GetStatus	Client	`O`		The CLIENT sends this event to the AVANZE API to get the status of the order.
AT31	OrderStatus	Avanze API		`R`	The AVANZE API sends this event to the CLIENT to notify you of the status of the order.
AT34	GetPayloadData	Avanze API		`R`	The AVANZE API sends this event to the CLIENT to request payload data of the order.
AT35	UpdateOrderStatus	Both			CLIENT and/or AVANZE API send this event to update the order status and documents data.
AT36	PayloadData	Client	`O`		The Client sends this event to provide payload data.
AT45	ClientFeedback	Client	`O`		The CLIENT sends this event for feedback.
AT46	OrderException	Client	`O`		The Client sends this event to STACX to clear the exceptions raised.
AT50	OrderComplete	Client	`O`		The CLIENT sends this event to notify AVANZE API that the order request is completed.
AT60	NewDocType	Client	`O`		The Client sends this event to the STACX/MAX to add a new Document Type for Classification.
AT65	ClassificationFB	Client	`O`		The Client sends this event to the STACX/MAX to provide feedback on Document Type Classification.
AT70	ExtractionFB	Client	`O`		The Client sends this event to STACX/MAX to provide feedback on Extraction Fields.
AT76	UpdateDocumentField	Client	`O`		The Client sends this event to the STACX/MAX to Update the document field names.

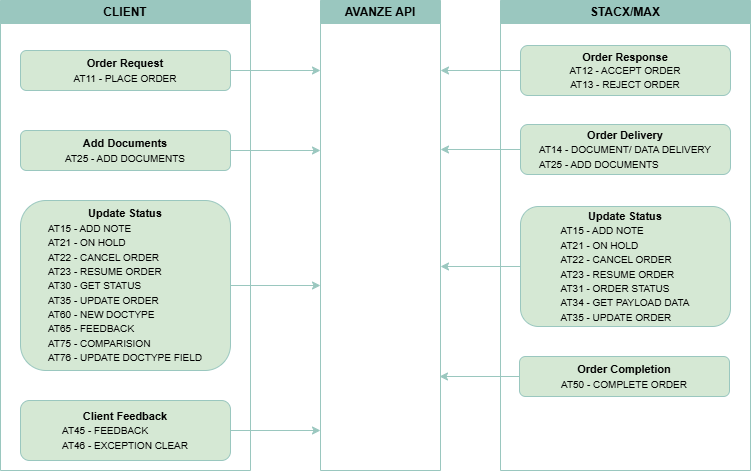

Workflow Diagram

A typical standard workflow process that clients commonly demand from their STACX/MAX instance encompasses the entire product ordering and order completion process.

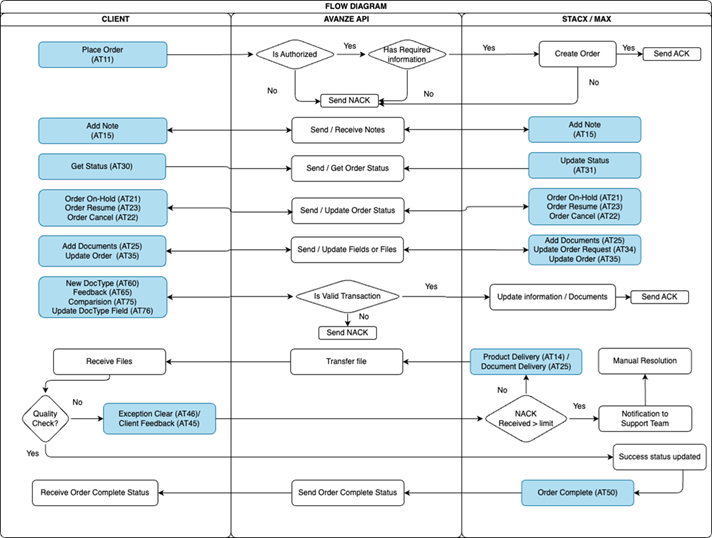

Flow Diagram

POST

Event Definition

Order Placement:

CLIENT will create the Order Requests (CLIENT API Event AT11). CLIENT API will route the orders to STACX / MAX.

Confirmation of the orders:

STACX / MAX will confirm the request (CLIENT API Event AT12) for the order.
If STACX / MAX does not accept the order, MAX will decline the order by sending Order Not Accepted by STACX / MAX (CLIENT API Event AT13) on the order.

Order Process:

The STACX / MAX and/or CLIENT may send the documents to the order by the event (CLIENTAPI Event AT25) event.
When the order is complete, STACX / MAX will upload the documents using Document Delivered by STACX / MAX with product data (CLIENT API Event AT14).

Quality Check:

After receiving the (CLIENT API Event AT14), CLIENT with do quality check for every order

If Quality check is passed, then CLIENT will send (CLIENT API Event AT50) to STACX / MAX.
If QC fails, then Client sends AT45 (CLIENT API Event AT45) to STACX / MAX Which will move the order into Client feedback queue and then after correction the STACX / MAX will send the (CLIENT API Event AT14) back to CLIENT.

Completion of Order:

CLIENT will send Order Completed (CLIENT API Event AT50) to STACX / MAX to indicate the order is completed.

General Use Events:

STACX / MAX should post any notes or events to CLIENT by sending Notes (CLIENT API Event AT15) on the applicable order. Notes (CLIENT API Event AT15) will also be utilized by the CLIENT in the applicable order to relay information to CLIENT.
The STACX / MAX and/or CLIENT may communicate that the order is on hold by sending Order On-Hold (CLIENTAPI Event AT21) event. The Order Resume (CLIENTAPI Event AT23) is sent to resume an order that has been put on hold (CLIENT API Event AT21).
The Client sends this event to the STACX / MAX to get the status of the order (CLIENT API Event AT30) event.
The STACX / MAX or Client sends this event to notify the order status and documents data of the order (CLIENT API Event AT35) event.

POST

AT11 - Place Order

CLIENT sends this event to initiate an order request to AVANZE API.

CLIENT sends this event to initiate an order request to STACX.

Name	Type	Required	Description
Header
`Created`	`date time`	Yes	Request date time (2021-06-10T14:18:42+00:00 (W3C))
`SourceApp`	`string`	Yes	Name of Source application
`SourceVer`	`string`	Yes	Application Version
`SourceEnv`	`string`	Yes	Source application environment. Eg: UAT/DEV/PROD
`ClientID`	`string`	Yes	ClientID (mentioned under purpose section)
`EventCode`	`string`	Yes	Requested Event Code. Eg: AT11
`EventName`	`string`	Yes	Name of the event. Eg: PlaceOrder
`CorrelationIdentifier`	`string`	Yes	Unique 32-bit random Hash for the event
Transaction
`TransactionID`	`string`	Yes	Order number of the client application
Transaction > LoanInfo
`LoanNumber`	`string`	Yes	Loan Number
`ProductCode`	`string`	Yes	ProductCode is mentioned in Product Section
Transaction > LoanInfo > Property
`Address1`	`string`	Yes	Property address
`Address2`	`string`	Yes	Property address
`State`	`string`	Yes	Property statecode
`County`	`string`	Yes	Property county
`City`	`string`	Yes	Property city
`Zip`	`string`	Yes	Property zipcode
Transaction > DocumentsList
`Count`	`number`	Yes	No of documents count
Transaction > DocumentsList > Documents > Document
`FileName`	`string`	Yes	Name of the document
`FileType`	`string`	Yes	Document type. Eg: PDF
`FileSource`	`string`	Yes	File Source Eg: Base64/S3/SFTP/LINK
`File`	`string`	Yes	File Content / File Path
Comments	`string`	Yes	Comments

Example Request (cURL)

{
  "Header": {
    "Created": "2025-09-19T15:16:26-04:00",
    "SourceApp": "{{client_app_name}}",
    "SourceVer": "1",
    "SourceEnv": "UAT",
    "ClientID": "{{client_id}}",
    "EventCode": "AT11",
    "EventName": "PlaceOrder",
    "CorrelationIdentifier": "c8721c77a72b7321c884eefcdd496d23"
  },
  "Transaction": {
    "TransactionID": "{{unique_transaction_id}}",
    "LoanInfo": {
      "LoanNumber": "{{loan_number}}",
      "ProductCode": "{{product_code}}",
      "Property": {
        "Address1": "XPRESS Street",
        "Address2": "",
        "State": "FL",
        "County": "PUTNAM",
        "City": "BOSTWICK",
        "Zipcode": "32007"
      }
    },
    "DocumentsList": {
      "Count": "1",
      "Documents": {
        "Document": [
          {
            "FileName": "filename1.pdf",
            "FileType": "PDF",
            "FileSource": "BASE64",/*BASE64/S3/SFTP/LINK*/
            "File": "FileContent"/*Base64 Content/ S3 path/ SFTP path/ Download link*/
          },
          {
            "FileName": "filename2.pdf",
            "FileType": "PDF",
            "FileSource": "BASE64",/*BASE64/S3/SFTP/LINK*/
            "File": "FileContent"/*Base64 Content/S3 path/SFTP path/Download link*/
          }
        ]
      }
    },
    "Comments": "SPECIAL INSTRUCTIONS"
  }
}

ACK Response

{
    "Header": {
        "Created": "2025-09-19T15:16:28-04:00",
        "SourceApp": "{{client_app_name}}",
        "SourceVer": "2.0",
        "SourceEnv": "UAT",
        "Status": "ACK"
    },
    "Transaction": {
        "TransactionID": "{{unique_transaction_id}}",
        "OrderNumber": "{{STACXID}}"
    }
}

NACK Response

{
    "Header": {
        "Created": "2021/10/18 10:48:20",
        "SourceApp": "{{client_app_name}}",
        "SourceVer": "1",
        "SourceEnv": "UAT",
        "Status": "NACK"
    },
    "Transaction": {
        "TransactionID": "{{unique_transaction_id}}",
        "Errors": {
            "Type": "Event Failed",
            "Description": "{{Error Description}}"
        }
    }
}

POST

AT12 - Accept Order

STACX sends this event to CLIENT to inform that STACX accepts the order request.

CLIENT sends this event to initiate an order request to STACX.

Name	Type	Required	Description
Header
`Created`	`date time`	Yes	Request date time (2021-06-10T14:18:42+00:00 (W3C))
`SourceApp`	`string`	Yes	Name of Source application
`SourceVer`	`string`	Yes	Application Version
`SourceEnv`	`string`	Yes	Source application environment. Eg: UAT/DEV/PROD
`ClientID`	`string`	Yes	ClientID (mentioned under purpose section)
`EventCode`	`string`	Yes	Requested Event Code. Eg: AT12
`EventName`	`string`	Yes	Name of the event. Eg: AcceptOrder
`CorrelationIdentifier`	`string`	Yes	Unique 32-bit random Hash for the event
Transaction
`TransactionID`	`string`	Yes	Order number of the client application
Transaction > Comments	`string`	Yes	Comments

JSON Request

{
    "Header": {
        "Created": "2021-06-09T15:16:26-04:00",
        "SourceApp": "STACX",
        "SourceVer": "2.0",
        "SourceEnv": "UAT",
        "ClientID": "{{client_id}}",
        "EventCode": "AT12",
        "EventName": "AcceptOrder",
        "CorrelationIdentifier": "c8721c77a72b7321c884eefcdd496d23"
    },
    "Transaction": {
        "TransactionID": "{{unique_transaction_id}}",
        "Comments": "The Order has been accepted"
    }
}

ACK Response

{
    "Header": {
        "Created": "2025-09-19T15:16:28-04:00",
        "SourceApp": "{{client_app_name}}",
        "SourceVer": "2.0",
        "SourceEnv": "UAT",
        "Status": "ACK"
    },
    "Transaction": {
        "TransactionID": "{{unique_transaction_id}}",
        "OrderNumber": "{{STACXID}}"
    }
}

NACK Response

{
    "Header": {
        "Created": "2021/10/18 10:48:20",
        "SourceApp": "{{client_app_name}}",
        "SourceVer": "1",
        "SourceEnv": "UAT",
        "Status": "NACK"
    },
    "Transaction": {
        "TransactionID": "{{unique_transaction_id}}",
        "Errors": {
            "Type": "Event Failed",
            "Description": "{{Error Description}}"
        }
    }
}

POST

AT13 - Reject Order

STACX sends this event to CLIENT to inform that the STACX does not accept the order request.

CLIENT sends this event to initiate an order request to STACX.

Name	Type	Required	Description
Header
`Created`	`date time`	Yes	Request date time (2021-06-10T14:18:42+00:00 (W3C))
`SourceApp`	`string`	Yes	Name of Source application
`SourceVer`	`string`	Yes	Application Version
`SourceEnv`	`string`	Yes	Source application environment. Eg: UAT/DEV/PROD
`ClientID`	`string`	Yes	ClientID (mentioned under purpose section)
`EventCode`	`string`	Yes	Requested Event Code. Eg: AT13
`EventName`	`string`	Yes	Name of the event. Eg: RejectOrder
`CorrelationIdentifier`	`string`	Yes	Unique 32-bit random Hash for the event
Transaction
`TransactionID`	`string`	Yes	Order number of the client application
Transaction > Comments	`string`	Yes	Comments

JSON Request

{
    "Header": {
        "Created": "2021-06-09T15:16:26-04:00",
        "SourceApp": "STACX",
        "SourceVer": "2.0",
        "SourceEnv": "UAT",
        "ClientID": "{{client_id}}",
        "EventCode": "AT13",
        "EventName": "AcceptOrder",
        "CorrelationIdentifier": "c8721c77a72b7321c884eefcdd496d23"
    },
    "Transaction": {
        "TransactionID": "{{unique_transaction_id}}",
        "Comments": "The Order has been accepted"
    }
}

ACK Response

{
    "Header": {
        "Created": "2025-09-19T15:16:28-04:00",
        "SourceApp": "{{client_app_name}}",
        "SourceVer": "2.0",
        "SourceEnv": "UAT",
        "Status": "ACK"
    },
    "Transaction": {
        "TransactionID": "{{unique_transaction_id}}",
        "OrderNumber": "{{STACXID}}"
    }
}

NACK Response

{
    "Header": {
        "Created": "2021/10/18 10:48:20",
        "SourceApp": "{{client_app_name}}",
        "SourceVer": "1",
        "SourceEnv": "DEV",
        "Status": "NACK"
    },
    "Transaction": {
        "TransactionID": "{{unique_transaction_id}}",
        "Errors": {
            "Type": "Event Failed",
            "Description": "{{Error Description}}"
        }
    }
}

POST

AT14 - Product Delivery

STACX sends this event to CLIENT with the order documents and product data.

CLIENT sends this event to initiate an order request to STACX.

Name	Type	Required	Description
Header
`Created`	`date time`	Yes	Request date time (2021-06-10T14:18:42+00:00 (W3C))
`SourceApp`	`string`	Yes	Name of Source application
`SourceVer`	`string`	Yes	Application Version
`SourceEnv`	`string`	Yes	Source application environment. Eg: UAT/DEV/PROD
`ClientID`	`string`	Yes	ClientID (mentioned under purpose section)
`EventCode`	`string`	Yes	Requested Event Code. Eg: AT14
`EventName`	`string`	Yes	Name of the event. Eg: Product Delivery
`CorrelationIdentifier`	`string`	Yes	Unique 32-bit random Hash for the event
Transaction
`TransactionID`	`string`	Yes	Order number of the client application
`OrderNumber`	`string`	Yes	Order number of the STACX application
Transaction > ClassificationData > Page
`PageNum`	`string`	Yes	Page Number Eg :1
`DocType`	`string`	Yes	DocType Eg : Credit Report
`PageConfidence`	`string`	Yes	Page Confidence Eg : 78
Transaction > DocumentsList
`Count`	`number`	Yes	Page Confidence Eg : 78
Transaction > DocumentsList > Documents > Document
`FileName`	`string`	Yes	Name of the document
`Type`	`string`	Yes	Type Eg: Credit Report
`Pages`	`string`	Yes	Pages Eg: 4
`FileType`	`string`	Yes	Type of the document. Eg. PDF
`FileSize`	`string`	Yes	Document size.
`FileSource`	`string`	Yes	File Source Eg: Base64/S3/SFTP/LINK
`File`	`string`	Yes	File Content / File Path
`Attribute`	`string`	Yes	Attributes
Transaction > DocumentsList > Documents > Document > Attribute
`Name`	`string`	Yes	Name Eg : Version,Borrower_First_Name
`Value`	`string`	Yes	Value Eg : 1.0,John
`Page`	`string`	number	Page number. Eg : 1
Transaction > Reports
`FileName`	`string`	Yes	File Name. Eg:AuditCheckList.pdf
`FileType`	`string`	Yes	Document type. Eg: PDF
`FileSource`	`string`	Yes	File Source Eg: Base64
`Type`	`string`	Yes	Type Eg: AuditChecklist
`File`	`string`	Yes	File Content
Transaction > Comments	`string`	Yes	Comments

JSON Payload

{
    "Header": {
        "Created": "2021-06-09T15:16:26-04:00",
        "SourceApp": "STACX",
        "SourceVer": "2.0",
        "SourceEnv": "DEV",
        "ClientID": "{{client_id}}",
        "EventCode": "AT14",
        "EventName": "ProductDelivery",
        "CorrelationIdentifier": "c8721c77a72b7321c884eefcdd496d23"
    },
    "Transaction": {
        "TransactionID": "{{transaction_id}}",
        "OrderNumber": "{{stacx_order_number}}",
        "ClassificationData": {
            "Page": [
                {
                    "PageNum": "1",
                    "DocType": "Credit Report",
                    "PageConfidence": "78"
                },
                {
                    "PageNum": "2",
                    "DocType": "Credit Report",
                    "PageConfidence": "89"
                },
                {
                    "PageNum": "3",
                    "DocType": "Credit Report",
                    "PageConfidence": "98"
                },
                {
                    "PageNum": "4",
                    "DocType": "Loan Estimate",
                    "PageConfidence": "75"
                },
                {
                    "PageNum": "5",
                    "DocType": "Loan Estimate",
                    "PageConfidence": "55"
                },
                {
                    "PageNum": "6",
                    "DocType": "Loan Estimate",
                    "PageConfidence": "68"
                },
                {
                    "PageNum": "7",
                    "DocType": "Security Instrument",
                    "PageConfidence": "100"
                },
                {
                    "PageNum": "8",
                    "DocType": "Security Instrument",
                    "PageConfidence": "100"
                },
                {
                    "PageNum": "9",
                    "DocType": "Loan Estimate",
                    "PageConfidence": "22"
                },
                {
                    "PageNum": "10",
                    "DocType": "Credit Report",
                    "PageConfidence": "22"
                }
            ]
        },
        "DocumentList": {
            "Count": "3",
            "Documents": {
                "Document": [
                    {
                        "FileName": "creditreport.pdf",
                        "Type": "Credit Report",
                        "Pages": "4",
                        "FileType": "pdf",
                        "FileSize": "227049617",
                        "Format": "multipage",
                        "Hash": "cfcd208495d565ef66e7dff9f98764da",
                        "FileSource": "Base64",/*BASE64/S3/SFTP/LINK*/
                        "File": "FileContent",/*Base64 Content/ S3 path/ SFTP path/ Download link*/
                        "Attribute": [
                            {
                                "Name": "Version",
                                "Value": "1.0",
                                "Page": "1"
                            },
                            {
                                "Name": "Borrower_First_Name",
                                "Value": "John",
                                "Page": "1"
                            },
                            {
                                "Name": "Borrower_Last_Name",
                                "Value": "Smith",
                                "Page": "2"
                            },
                            {
                                "Name": "Borrower_Address_City",
                                "Value": "Achorough",
                                "Page": "2"
                            },
                            {
                                "Name": "Borrower_Address_Line1",
                                "Value": "123 street",
                                "Page": "3"
                            },
                            {
                                "Name": "Borrower_Address_State",
                                "Value": "AK",
                                "Page": "3"
                            },
                            {
                                "Name": "Borrower_Address_Zip",
                                "Value": "99501",
                                "Page": "1"
                            },
                            {
                                "Name": "Borrower_Middle_Name",
                                "Value": "K",
                                "Page": "1"
                            },
                            {
                                "Name": "CoBorrower_First_Name",
                                "Value": "",
                                "Page": "10"
                            },
                            {
                                "Name": "CoBorrower_Last_Name",
                                "Value": "",
                                "Page": "10"
                            },
                            {
                                "Name": "Credit_Report_Date",
                                "Value": "",
                                "Page": "10"
                            }
                        ]
                    },
                    {
                        "FileName": "loanestimate.pdf",
                        "Type": "Loan Estimate",
                        "pages": "4",
                        "FileType": "pdf",
                        "FileSize": "227049617",
                        "Format": "multipage",
                        "Hash": "cfcd208495d565ef66e7dff9f98764da",
                        "FileSource": "Base64",/*BASE64/S3/SFTP/LINK*/
                        "File": "FileContent",/*Base64 Content/ S3 path/ SFTP path/ Download link*/
                        "Attribute": [
                            {
                                "Name": "field11",
                                "Value": "value11",
                                "Page": "4"
                            },
                            {
                                "Name": "field12",
                                "Value": "value12",
                                "Page": "4"
                            },
                            {
                                "Name": "field13",
                                "Value": "value13",
                                "Page": "6"
                            },
                            {
                                "Name": "field14",
                                "Value": "value14",
                                "Page": "9"
                            }
                        ]
                    },
                    {
                        "FileName": "SecurityInstrument.pdf",
                        "Type": "Security Instrument",
                        "pages": "2",
                        "FileType": "pdf",
                        "FileSize": "227049617",
                        "Format": "multipage",
                        "Hash": "cfcd208495d565ef66e7dff9f98764da",
                        "FileSource": "Base64",/*BASE64/S3/SFTP/LINK*/
                        "File": "FileContent",/*Base64 Content/ S3 path/ SFTP path/ Download link*/
                        "Attribute": [
                            {
                                "Name": "field21",
                                "Value": "value21",
                                "Page": "7"
                            },
                            {
                                "Name": "field22",
                                "Value": "value22",
                                "Page": "7"
                            },
                            {
                                "Name": "field23",
                                "Value": "value23",
                                "Page": "7"
                            },
                            {
                                "Name": "field24",
                                "Value": "value24",
                                "Page": "8"
                            }
                        ]
                    }
                ]
            }
        },
        "Reports": [
            {
                "FileName": "AuditChecklist.pdf",
                "FileType": "PDF",
                "Type": "AuditChecklist",
                "FileSource": "BASE64",
                "File": "Base64 Encoded File"
            }
        ],
        "Comments": "Product Delivery"
    }
}

ACK Response

{
    "Header": {
        "Created": "2025-09-19T15:16:28-04:00",
        "SourceApp": "{{client_app_name}}",
        "SourceVer": "2.0",
        "SourceEnv": "UAT",
        "Status": "ACK"
    },
    "Transaction": {
        "TransactionID": "{{unique_transaction_id}}",
        "OrderNumber": "{{STACXID}}"
    }
}

NACK Response

{
    "Header": {
        "Created": "2025-09-19T15:16:28-04:00",
        "SourceApp": "{{client_app_name}}",
        "SourceVer": "2.0",
        "SourceEnv": "UAT",
        "Status": "NACK"
    },
    "Transaction": {
        "TransactionID": "{{Client TransactionID}}",
        "Errors": {
            "Type": "Event Failed",
            "Description": "Unable to proceed this request."
        }
    }
}

POST

AT15 - Add Notes

CLIENT and/or STACX send this event to provide a note on an order request.

CLIENT sends this event to initiate an order request to STACX.

Name	Type	Required	Description
Header
`Created`	`date time`	Yes	Request date time (2021-06-10T14:18:42+00:00 (W3C))
`SourceApp`	`string`	Yes	Name of Source application
`SourceVer`	`string`	Yes	Application Version
`SourceEnv`	`string`	Yes	Source application environment. Eg: UAT/DEV/PROD
`ClientID`	`string`	Yes	ClientID (mentioned under purpose section)
`EventCode`	`string`	Yes	Requested Event Code. Eg: AT11
`EventName`	`string`	Yes	Name of the event. Eg: PlaceOrder
`CorrelationIdentifier`	`string`	Yes	Unique 32-bit random Hash for the event
Transaction
`TransactionID`	`string`	Yes	Order number of the client application
`OrderNumber`	`string`	Yes	Order Number
`Comments`	`string`	Yes	Comments

Add Notes (JSON)

{
  "Header": {
    "Created": "2021-06-09T15:16:26-04:00",
    "SourceApp": "CLIENTAPPNAME",
    "SourceVer": "2.0",
    "SourceEnv": "DEV",
    "ClientID": "XYZTEST123",
    "EventCode": "AT15",
    "EventName": "AddNotes",
    "CorrelationIdentifier": "c8721c77a72b7321c884eefcdd496d23"
  },
  "Transaction": {
    "TransactionID": "{{unique_transaction_id}}",
    "OrderNumber": "{{STACXID}}",
    "Comments": "Testing Add notes "
  }
}

ACK Response

{
    "Header": {
        "Created": "2025-09-19T15:16:28-04:00",
        "SourceApp": "{{client_app_name}}",
        "SourceVer": "2.0",
        "SourceEnv": "UAT",
        "Status": "ACK"
    },
    "Transaction": {
        "TransactionID": "{{unique_transaction_id}}",
        "OrderNumber": "{{STACXID}}"
    }
}

NACK Response

{
    "Header": {
        "Created": "2025-09-19T15:16:28-04:00",
        "SourceApp": "{{client_app_name}}",
        "SourceVer": "2.0",
        "SourceEnv": "UAT",
        "Status": "NACK"
    },
    "Transaction": {
        "TransactionID": "{{Client TransactionID}}",
        "Errors": {
            "Type": "Event Failed",
            "Description": "Unable to proceed this request."
        }
    }
}

POST

AT21 - Hold Order

CLIENT and/or STACX send this event to place the order request on hold.

CLIENT sends this event to initiate an order request to STACX.

Name	Type	Required	Description
Header
`Created`	`date time`	Yes	Request date time (2021-06-10T14:18:42+00:00 (W3C))
`SourceApp`	`string`	Yes	Name of Source application
`SourceVer`	`string`	Yes	Application Version
`SourceEnv`	`string`	Yes	Source application environment. Eg: UAT/DEV/PROD
`ClientID`	`string`	Yes	ClientID (mentioned under purpose section)
`EventCode`	`string`	Yes	Requested Event Code. Eg: AT11
`EventName`	`string`	Yes	Name of the event. Eg: PlaceOrder
`CorrelationIdentifier`	`string`	Yes	Unique 32-bit random Hash for the event
Transaction
`TransactionID`	`string`	Yes	Order number of the client application
`OrderNumber`	`string`	Yes	Order Number
`Comments`	`string`	Yes	Comments

Hold Order (JSON)

{
  "Header": {
    "Created": "2021-06-09T15:16:26-04:00",
    "SourceApp": "CLIENTAPPNAME",
    "SourceVer": "2.0",
    "SourceEnv": "DEV",
    "ClientID": "XYZTEST123",
    "EventCode": "AT21",
    "EventName": "HoldOrder",
    "CorrelationIdentifier": "c8721c77a72b7321c884eefcdd496d23"
  },
  "Transaction": {
    "TransactionID": "{{unique_transaction_id}}",
    "OrderNumber": "{{STACXID}}",
    "Comments": "Testing Add notes "
  }
}

ACK Response

{
    "Header": {
        "Created": "2025-09-19T15:16:28-04:00",
        "SourceApp": "{{client_app_name}}",
        "SourceVer": "2.0",
        "SourceEnv": "UAT",
        "Status": "ACK"
    },
    "Transaction": {
        "TransactionID": "{{unique_transaction_id}}",
        "OrderNumber": "{{STACXID}}"
    }
}

NACK Response

{
    "Header": {
        "Created": "2025-09-19T15:16:28-04:00",
        "SourceApp": "{{client_app_name}}",
        "SourceVer": "2.0",
        "SourceEnv": "UAT",
        "Status": "NACK"
    },
    "Transaction": {
        "TransactionID": "{{Client TransactionID}}",
        "Errors": {
            "Type": "Event Failed",
            "Description": "Unable to proceed this request."
        }
    }
}

POST

AT22 - Cancel Order

CLIENT and/or AVANZE API send this event to cancel the order request.

CLIENT sends this event to initiate an order request to STACX.

Name	Type	Required	Description
Header
`Created`	`date time`	Yes	Request date time (2021-06-10T14:18:42+00:00 (W3C))
`SourceApp`	`string`	Yes	Name of Source application
`SourceVer`	`string`	Yes	Application Version
`SourceEnv`	`string`	Yes	Source application environment. Eg: UAT/DEV/PROD
`ClientID`	`string`	Yes	ClientID (mentioned under purpose section)
`EventCode`	`string`	Yes	Requested Event Code. Eg: AT22
`EventName`	`string`	Yes	Name of the event. Eg: Cancel Order
`CorrelationIdentifier`	`string`	Yes	Unique 32-bit random Hash for the event
Transaction
`TransactionID`	`string`	Yes	Order number of the client application
`OrderNumber`	`string`	Yes	Order Number
`Comments`	`string`	Yes	Comments

Cancel Order (JSON)

{
  "Header": {
    "Created": "2021-06-09T15:16:26-04:00",
    "SourceApp": "CLIENTAPPNAME",
    "SourceVer": "2.0",
    "SourceEnv": "DEV",
    "ClientID": "XYZTEST123",
    "EventCode": "AT22",
    "EventName": "CancelOrder",
    "CorrelationIdentifier": "c8721c77a72b7321c884eefcdd496d23"
  },
  "Transaction": {
    "TransactionID": "{{unique_transaction_id}}",
    "OrderNumber": "{{STACXID}}",
    "Comments": "Testing Add notes "
  }
}

ACK Response

{
    "Header": {
        "Created": "2025-09-19T15:16:28-04:00",
        "SourceApp": "{{client_app_name}}",
        "SourceVer": "2.0",
        "SourceEnv": "UAT",
        "Status": "ACK"
    },
    "Transaction": {
        "TransactionID": "{{unique_transaction_id}}",
        "OrderNumber": "{{STACXID}}"
    }
}

NACK Response

{
    "Header": {
        "Created": "2025-09-19T15:16:28-04:00",
        "SourceApp": "{{client_app_name}}",
        "SourceVer": "2.0",
        "SourceEnv": "UAT",
        "Status": "NACK"
    },
    "Transaction": {
        "TransactionID": "{{Client TransactionID}}",
        "Errors": {
            "Type": "Event Failed",
            "Description": "Unable to proceed this request."
        }
    }
}

POST

AT23 - Resume Order

CLIENT or AVANZE API sends this event to resume a service order request that has been cancelled or put on hold.

Name	Type	Required	Description
Header
`Created`	`date time`	Yes	Request date time (2021-06-10T14:18:42+00:00 (W3C))
`SourceApp`	`string`	Yes	Name of Source application
`SourceVer`	`string`	Yes	Application Version
`SourceEnv`	`string`	Yes	Source application environment. Eg: UAT/DEV/PROD
`ClientID`	`string`	Yes	ClientID (mentioned under purpose section)
`EventCode`	`string`	Yes	Requested Event Code. Eg: AT23
`EventName`	`string`	Yes	Name of the event. Eg: Resume Order
`CorrelationIdentifier`	`string`	Yes	Unique 32-bit random Hash for the event
Transaction
`TransactionID`	`string`	Yes	Order number of the client application
`OrderNumber`	`string`	Yes	Order Number
`Comments`	`string`	Yes	Comments

Cancel Order (JSON)

{
  "Header": {
    "Created": "2021-06-09T15:16:26-04:00",
    "SourceApp": "CLIENTAPPNAME",
    "SourceVer": "2.0",
    "SourceEnv": "DEV",
    "ClientID": "XYZTEST123",
    "EventCode": "AT23",
    "EventName": "ResumeOrder",
    "CorrelationIdentifier": "c8721c77a72b7321c884eefcdd496d23"
  },
  "Transaction": {
    "TransactionID": "{{unique_transaction_id}}",
    "OrderNumber": "{{STACXID}}",
    "Comments": "Testing Add notes "
  }
}

ACK Response

{
    "Header": {
        "Created": "2025-09-19T15:16:28-04:00",
        "SourceApp": "{{client_app_name}}",
        "SourceVer": "2.0",
        "SourceEnv": "UAT",
        "Status": "ACK"
    },
    "Transaction": {
        "TransactionID": "{{unique_transaction_id}}",
        "OrderNumber": "{{STACXID}}"
    }
}

NACK Response

{
    "Header": {
        "Created": "2025-09-19T15:16:28-04:00",
        "SourceApp": "{{client_app_name}}",
        "SourceVer": "2.0",
        "SourceEnv": "UAT",
        "Status": "NACK"
    },
    "Transaction": {
        "TransactionID": "{{Client TransactionID}}",
        "Errors": {
            "Type": "Event Failed",
            "Description": "Unable to proceed this request."
        }
    }
}

POST

AT25 - Add Document

CLIENT or AVANZE API sends this event to attach documents to the order.

Name	Type	Required	Description
Header
`Created`	`date time`	Yes	Request date time (2021-06-10T14:18:42+00:00 (W3C))
`SourceApp`	`string`	Yes	Name of Source application
`SourceVer`	`string`	Yes	Application Version
`SourceEnv`	`string`	Yes	Source application environment. Eg: UAT/DEV/PROD
`ClientID`	`string`	Yes	ClientID (mentioned under purpose section)
`EventCode`	`string`	Yes	Requested Event Code. Eg: AT23
`EventName`	`string`	Yes	Name of the event. Eg: Resume Order
`CorrelationIdentifier`	`string`	Yes	Unique 32-bit random Hash for the event
Transaction
`TransactionID`	`string`	Yes	Order number of the client application
`OrderNumber`	`string`	Yes	Order Number
`Comments`	`string`	Yes	Comments
Transaction > Documents List > Document
`FileName`	`string`	Yes	File Name of the Sample Template provided
`FileType`	`string`	Yes	Document type. Eg: PDF
`FileSource`	`string`	Yes	File Source Eg: Base64
`File`	`string`	Yes	File Content

Add Document (JSON)

{
    "Header": {
        "Created": "2023-02-16T15:11:22.34",
        "SourceApp": "{{client_app_name}}",
        "SourceVer": "2.0",
        "SourceEnv": "0",
        "ClientID": "XYZTEST123",
        "EventCode": "AT25",
        "EventName": "AddDocument",
        "CorrelationIdentifier": "798EB87B-152E-4017-A33A-613C49034F5C"
    },
    "Transaction": {
        "TransactionID": "{{unique_transaction_id}}",
        "OrderNumber": "{{STACXID}}",
        "Comments": "Client send this event to add the document on a order",
        "DocumentsList": {
            "Document": {
                "FileName": "2297170.pdf",
                "FileType": "PDF",
                "FileSource": "BASE64",
                "File": "FileContent"
            }
        }
    }
}

ACK Response

{
    "Header": {
        "Created": "2025-09-19T15:16:28-04:00",
        "SourceApp": "{{client_app_name}}",
        "SourceVer": "2.0",
        "SourceEnv": "UAT",
        "Status": "ACK"
    },
    "Transaction": {
        "TransactionID": "{{unique_transaction_id}}",
        "OrderNumber": "{{STACXID}}"
    }
}

NACK Response

{
    "Header": {
        "Created": "2025-09-19T15:16:28-04:00",
        "SourceApp": "{{client_app_name}}",
        "SourceVer": "2.0",
        "SourceEnv": "UAT",
        "Status": "NACK"
    },
    "Transaction": {
        "TransactionID": "{{Client TransactionID}}",
        "Errors": {
            "Type": "Event Failed",
            "Description": "Unable to proceed this request."
        }
    }
}

POST

AT30 - Get Status

The CLIENT sends this event to the AVANZE API to get the status of the order.

Name	Type	Required	Description
Header
`Created`	`date time`	Yes	Request date time (2021-06-10T14:18:42+00:00 (W3C))
`SourceApp`	`string`	Yes	Name of Source application
`SourceVer`	`string`	Yes	Application Version
`SourceEnv`	`string`	Yes	Source application environment. Eg: UAT/DEV/PROD
`ClientID`	`string`	Yes	ClientID (mentioned under purpose section)
`EventCode`	`string`	Yes	Requested Event Code. Eg: AT23
`EventName`	`string`	Yes	Name of the event. Eg: Resume Order
`CorrelationIdentifier`	`string`	Yes	Unique 32-bit random Hash for the event
Transaction
`TransactionID`	`string`	Yes	Order number of the client application
`OrderStatus`	`string`	Yes	Current status of the order

JSON

{
    "Header": {
        "Created": "2021/10/18 03:14:18",
        "SourceApp": "{{client_app_name}}",
        "SourceVer": "2.0",
        "SourceEnv": "DEV",
        "Status": "ACK"
    },
    "Transaction": {
        "TransactionID": "{{unique_transaction_id}}",
        "OrderStatus": "Image Received"
    }
}

ACK Response

{
    "Header": {
        "Created": "2025-09-19T15:16:28-04:00",
        "SourceApp": "{{client_app_name}}",
        "SourceVer": "2.0",
        "SourceEnv": "UAT",
        "Status": "ACK"
    },
    "Transaction": {
        "TransactionID": "{{unique_transaction_id}}",
        "OrderNumber": "{{STACXID}}"
    }
}

NACK Response

{
    "Header": {
        "Created": "2025-09-19T15:16:28-04:00",
        "SourceApp": "{{client_app_name}}",
        "SourceVer": "2.0",
        "SourceEnv": "UAT",
        "Status": "NACK"
    },
    "Transaction": {
        "TransactionID": "{{Client TransactionID}}",
        "Errors": {
            "Type": "Event Failed",
            "Description": "Unable to proceed this request."
        }
    }
}

POST

AT31 - Order Status

The AVANZE API sends this event to the CLIENT to notify you of the status of the order.

Name	Type	Required	Description
Header
`Created`	`date time`	Yes	Request date time (2021-06-10T14:18:42+00:00 (W3C))
`SourceApp`	`string`	Yes	Name of Source application
`SourceVer`	`string`	Yes	Application Version
`SourceEnv`	`string`	Yes	Source application environment. Eg: UAT/DEV/PROD
`ClientID`	`string`	Yes	ClientID (mentioned under purpose section)
`EventCode`	`string`	Yes	Requested Event Code. Eg: AT31
`EventName`	`string`	Yes	Name of the event. Eg: OrderStatus
`CorrelationIdentifier`	`string`	Yes	Unique 32-bit random Hash for the event
Transaction
`TransactionID`	`string`	Yes	Order number of the client application
`OrderNumber`	`string`	Yes	Order Number
`OrderStatus`	`string`	Yes	Current status of the order
`Comments`	`string`	Yes	Comments

JSON

{
    "Header": {
        "Created": "2021/10/18 03:14:18",
        "SourceApp": "{{client_app_name}}",
        "SourceApp": "STACX",
        "SourceVer": "2.0",
        "SourceEnv": "DEV",
        "ClientID": "{{client_id}}",
        "EventCode": "AT31",
        "EventName": "OrderStatus",
        "CorrelationIdentifier": "c8721c77a72b7321c884eefcdd496d23"
    },
    "Transaction": {
        "TransactionID": "{{unique_transaction_id}}",
        "OrderNumber": "{{STACXID}}",
        "OrderStatus": "Work In Progress",
        "Comments": "Posting order status"
    }
}

ACK Response

{
    "Header": {
        "Created": "2025-09-19T15:16:28-04:00",
        "SourceApp": "{{client_app_name}}",
        "SourceVer": "2.0",
        "SourceEnv": "UAT",
        "Status": "ACK"
    },
    "Transaction": {
        "TransactionID": "{{unique_transaction_id}}",
        "OrderNumber": "{{STACXID}}"
    }
}

NACK Response

{
    "Header": {
        "Created": "2025-09-19T15:16:28-04:00",
        "SourceApp": "{{client_app_name}}",
        "SourceVer": "2.0",
        "SourceEnv": "UAT",
        "Status": "NACK"
    },
    "Transaction": {
        "TransactionID": "{{Client TransactionID}}",
        "Errors": {
            "Type": "Event Failed",
            "Description": "Unable to proceed this request."
        }
    }
}

POST

AT35 - Get Payload Data

CLIENT and/or AVANZE API send this event to update the order status and documents data.

Name	Type	Required	Description
Header
`Created`	`date time`	Yes	Request date time (2021-06-10T14:18:42+00:00 (W3C))
`SourceApp`	`string`	Yes	Name of Source application
`SourceVer`	`string`	Yes	Application Version
`SourceEnv`	`string`	Yes	Source application environment. Eg: UAT/DEV/PROD
`ClientID`	`string`	Yes	ClientID (mentioned under purpose section)
`EventCode`	`string`	Yes	Requested Event Code. Eg: AT35
`EventName`	`string`	Yes	Name of the event. Eg: OrderStatus
`CorrelationIdentifier`	`string`	Yes	Unique 32-bit random Hash for the event
Transaction
`TransactionID`	`string`	Yes	Order number of the client application
`OrderNumber`	`string`	Yes	Order Number
`Comments`	`string`	Yes	Comments

JSON

{
    "Header": {
        "Created": "2023-03-17T11:45:13-04:00",
        "SourceApp": "{{client_app_name}}",
        "SourceVer": "2.0",
        "SourceEnv": "DEV",
        "ClientID": "{{client_id}}",
        "EventCode": "AT35",
        "EventName": "GetPayloadData",
        "CorrelationIdentifier": "2aef38cb588ae6d6d63af6affbddadf1"
    },
    "Transaction": {
        "TransactionID": "TRANS-170323-1003",
        "OrderNumber": "SSMOR49823000378",
        "Comments": "Trigger AT35 on coversheet print."
    }
}

ACK Response

{
    "Header": {
        "Created": "2025-09-19T15:16:28-04:00",
        "SourceApp": "{{client_app_name}}",
        "SourceVer": "2.0",
        "SourceEnv": "UAT",
        "Status": "ACK"
    },
    "Transaction": {
        "TransactionID": "{{unique_transaction_id}}",
        "OrderNumber": "{{STACXID}}"
    }
}

NACK Response

{
    "Header": {
        "Created": "2025-09-19T15:16:28-04:00",
        "SourceApp": "{{client_app_name}}",
        "SourceVer": "2.0",
        "SourceEnv": "UAT",
        "Status": "NACK"
    },
    "Transaction": {
        "TransactionID": "{{Client TransactionID}}",
        "Errors": {
            "Type": "Event Failed",
            "Description": "Unable to proceed this request."
        }
    }
}

POST

AT46 - Order Exception

The Client sends this event to the STACX to clear the exception raised.

Name	Type	Required	Description
Header
`Created`	`date time`	Yes	Request date time (2021-06-10T14:18:42+00:00 (W3C))
`SourceApp`	`string`	Yes	Name of Source application
`SourceVer`	`string`	Yes	Application Version
`SourceEnv`	`string`	Yes	Source application environment. Eg: UAT/DEV/PROD
`ClientID`	`string`	Yes	ClientID (mentioned under purpose section)
`EventCode`	`string`	Yes	Requested Event Code. Eg: AT46
`EventName`	`string`	Yes	Name of the event. Eg: Order Exception
`CorrelationIdentifier`	`string`	Yes	Unique 32-bit random Hash for the event
Transaction
`TransactionID`	`string`	Yes	Order number of the client application
`OrderNumber`	`string`	Yes	Order Number
`Comments`	`string`	Yes	Comments
Transaction > Exceptions
`ExceptionID`	`string`	Yes	ExceptionID
`ExceptionStatus`	`string`	Yes	Exception Status
`ExceptionCategory`	`string`	Yes	Exception Category
`DocumentType`	`string`	Yes	Document Type
`ExceptionType`	`string`	Yes	Exception Type
Transaction > Exceptions > QuestionAnswer
`Question`	`string`	Yes	Question
`Answer`	`string`	Yes	Answer
`IsCritical`	`string`	Yes	IsCritical
`Comments`	`string`	Yes	Comments
Transaction > Exceptions > Document
`FileName`	`string`	Yes	File Name of the Sample Template provided
`FileType`	`string`	Yes	Document type. Eg: PDF
`FileSource`	`string`	Yes	File Source Eg: Base64
`File`	`string`	Yes	File content

JSON

{
    "Header": {
        "Created": "2021-06-09T15:16:26-04:00",
        "SourceApp": "{{client_app_name}}",
        "SourceVer": "1",
        "SourceEnv": "UAT",
        "ClientID": "{{client_id}}",
        "EventCode": "AT46",
        "EventName": "OrderException",
        "CorrelationIdentifier": "c8721c77a72b7321c884eefcdd496d23"
    },
    "Transaction": {
        "TransactionID": "{{unique_transaction_id}}",
        "OrderNumber": "170320231004",
        "Comments": "Adding documents",
        "Exceptions": [
            {
                "ExceptionID": "2803",
                "ExceptionStatus": "New",
                "ExceptionCategory": "Post Audit",
                "DocumentType": "Disclosure",
                "ExceptionType": "Missing",
                "QuestionAnswer": {
                    "Question": "Is the Closing Disclosure Form present?",
                    "Answer": "No",
                    "IsCritical": "",
                    "Comments": null
                },
                "Documents": {
                    "FileName": "FileNumber2.pdf",
                    "FileType": "PDF",
                    "FileSource": "BASE64",
                    "File": "File Content"
                }
            }
        ]
    }
}

ACK Response

{
    "Header": {
        "Created": "2025-09-19T15:16:28-04:00",
        "SourceApp": "{{client_app_name}}",
        "SourceVer": "2.0",
        "SourceEnv": "UAT",
        "Status": "ACK"
    },
    "Transaction": {
        "TransactionID": "{{unique_transaction_id}}",
        "OrderNumber": "{{STACXID}}"
    }
}

NACK Response

{
    "Header": {
        "Created": "2025-09-19T15:16:28-04:00",
        "SourceApp": "{{client_app_name}}",
        "SourceVer": "2.0",
        "SourceEnv": "UAT",
        "Status": "NACK"
    },
    "Transaction": {
        "TransactionID": "{{Client TransactionID}}",
        "Errors": {
            "Type": "Event Failed",
            "Description": "Unable to proceed this request."
        }
    }
}

POST

AT50 - OrderComplete

The CLIENT sends this event to notify AVANZE API that the order request is completed.

Name	Type	Required	Description
Header
`Created`	`date time`	Yes	Request date time (2021-06-10T14:18:42+00:00 (W3C))
`SourceApp`	`string`	Yes	Name of Source application
`SourceVer`	`string`	Yes	Application Version
`SourceEnv`	`string`	Yes	Source application environment. Eg: UAT/DEV/PROD
`ClientID`	`string`	Yes	ClientID (mentioned under purpose section)
`EventCode`	`string`	Yes	Requested Event Code. Eg: AT45
`EventName`	`string`	Yes	Name of the event. Eg: ClientFeedback
`CorrelationIdentifier`	`string`	Yes	Unique 32-bit random Hash for the event
Transaction
`TransactionID`	`string`	Yes	Order number of the client application
`OrderNumber`	`string`	Yes	Order Number
`Comments`	`string`	Yes	Comments

JSON

{
    "Header": {
        "Created": "2021-06-09T15:16:26-04:00",
        "SourceApp": "{{client_app_name}}",
        "SourceVer": "1",
        "SourceEnv": "DEV",
        "ClientID": "{{client_id}}",
        "EventCode": "AT50",
        "EventName": "OrderComplete",
        "CorrelationIdentifier": "c8721c77a72b7321c884eefcdd496d23"
    },
    "Transaction": {
        "TransactionID": "{{unique_transaction_id}}",
        "OrderNumber": "654654",
        "Comments": "The order has been completed"
    }
}

ACK Response

{
    "Header": {
        "Created": "2025-09-19T15:16:28-04:00",
        "SourceApp": "{{client_app_name}}",
        "SourceVer": "2.0",
        "SourceEnv": "UAT",
        "Status": "ACK"
    },
    "Transaction": {
        "TransactionID": "{{unique_transaction_id}}",
        "OrderNumber": "{{STACXID}}"
    }
}

NACK Response

{
    "Header": {
        "Created": "2025-09-19T15:16:28-04:00",
        "SourceApp": "{{client_app_name}}",
        "SourceVer": "2.0",
        "SourceEnv": "UAT",
        "Status": "NACK"
    },
    "Transaction": {
        "TransactionID": "{{Client TransactionID}}",
        "Errors": {
            "Type": "Event Failed",
            "Description": "Unable to proceed this request."
        }
    }
}

POST

ACK Acknowledgement

The Avanze API / Client sends this event on success.

Name	Type	Required	Description
Header
`Created`	`date time`	Yes	Request date time (2021-06-10T14:18:42+00:00 (W3C))
`SourceApp`	`string`	Yes	Name of Source application
`SourceVer`	`string`	Yes	Application Version
`SourceEnv`	`string`	Yes	Source application environment. Eg: UAT/DEV/PROD
`ClientID`	`string`	Yes	ClientID (mentioned under purpose section)
`EventCode`	`string`	Yes	Requested Event Code. Eg: AT46
`EventName`	`string`	Yes	Name of the event. Eg: Order Exception
`CorrelationIdentifier`	`string`	Yes	Unique 32-bit random Hash for the event
Transaction
`TransactionID`	`string`	Yes	Order number of the client application
`OrderNumber`	`string`	Yes	Order Number

ACK Response

{
    "Header": {
        "Created": "2025-09-19T15:16:28-04:00",
        "SourceApp": "{{client_app_name}}",
        "SourceVer": "2.0",
        "SourceEnv": "UAT",
        "Status": "ACK"
    },
    "Transaction": {
        "TransactionID": "{{unique_transaction_id}}",
        "OrderNumber": "{{STACXID}}"
    }
}

POST

NACK Acknowledgement

The Avanze API / Client sends this event on failure.

Name	Type	Required	Description
Header
`Created`	`date time`	Yes	Request date time (2021-06-10T14:18:42+00:00 (W3C))
`SourceApp`	`string`	Yes	Name of Source application
`SourceVer`	`string`	Yes	Application Version
`SourceEnv`	`string`	Yes	Source application environment. Eg: UAT/DEV/PROD
`ClientID`	`string`	Yes	ClientID (mentioned under purpose section)
`EventCode`	`string`	Yes	Requested Event Code. Eg: AT46
`EventName`	`string`	Yes	Name of the event. Eg: Order Exception
`CorrelationIdentifier`	`string`	Yes	Unique 32-bit random Hash for the event
Transaction
`TransactionID`	`string`	Yes	Order number of the client application
`OrderNumber`	`string`	Yes	Order Number

NACK Response

{
    "Header": {
        "Created": "2025-09-19T15:16:28-04:00",
        "SourceApp": "{{client_app_name}}",
        "SourceVer": "2.0",
        "SourceEnv": "UAT",
        "Status": "NACK"
    },
    "Transaction": {
        "TransactionID": "{{Client TransactionID}}",
        "Errors": {
            "Type": "Event Failed",
            "Description": "Unable to proceed this request."
        }
    }
}
